EASY BOX 270

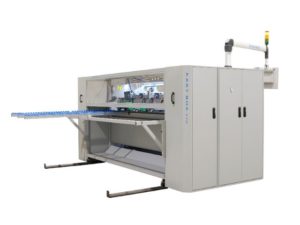

easy_box_270_tyl — kopia

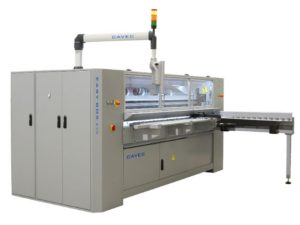

easy_box_270_przod — kopia

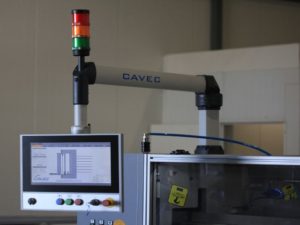

IMG_5639

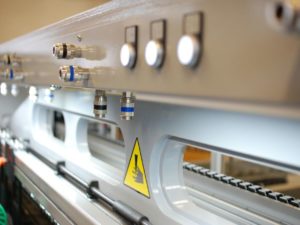

DSC_0619

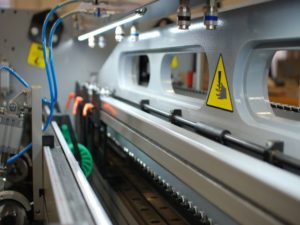

DSC_0618
Efficiency

Over 120 patterns of FEFCO codes + over 40 specially developed patterns.

Sheet dimensions and thickness

Up to 2,700 mm wide, 10,000 mm long and 16 mm thick, 3.5 and 7-ply cardboard.

Production speed

a/ single carton: up to approx. 550 sheets / h;
b/ several cartons in one pass: up to approx. / 2,500 sheets / h and more, depending on the construction.

Profitability / flexibility

From 1 carton / order.

DOWNLOAD THE INFORMATION LEAFLET
J-I-T production

Remnant sheet production: as the untreated part of the sheet remains intact, it can be used for further production.

Description of operation (manual feeder)
  • Manually fed sheet into the machine, it is captured by the pull shaft, and then automatically, with high speed and accuracy, transported and positioned by means of a servo drive.
  • The individual machining operations are performed with tools that are controlled by the PLC program
  • The subsequent operations are carried out automatically using individual workstations, without losing time, exactly according to the size and function introduced. As a result, high production speeds are achieved, while maintaining very high dimensional accuracy.
  • The appropriate functions and dimensions are entered using an industrial computer with a touch screen. Repetitive orders (programs) can be saved in computer memory.
  • The current status of the machine as well as the entered program are displayed and monitored on a color touch screen. This allows the machine operator to operate easily and continuously monitor the various functions.
