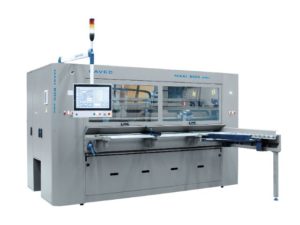

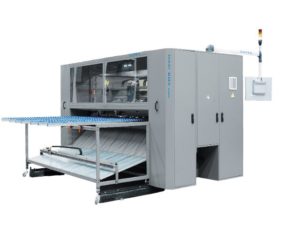

MAXI BOX 280

1 kopia
2_zm_w kopia
20191108_185424 sw
DSC_0885
DSC_0892
DSC_0911
Efficiency

Over 120 patterns of FEFCO codes + over 40 specially developed patterns.

Sheet dimensions and thickness

Up to 2,700 mm wide, 10,000 mm long and 16 mm thick, 3.5 and 7-ply cardboard.

J-I-T production

Remnant sheet production: as the untreated part of the sheet remains intact, it can be used for further production.

Production speed

a/ single carton: up to approx. 550 sheets / h;
b/ several cartons in one pass: up to approx. / 2,500 sheets / h and more, depending on the construction.

Profitability / flexibility

From 1 carton / order.

Flexo - Printing technology

Up to 2 independent Flexo printers that can be used in any position.

DOWNLOAD THE INFORMATION LEAFLET
Description of operation (manual feeder)
  • Manually fed sheet into the machine, it is captured by the pull shaft, and then automatically, with high speed and accuracy, transported and positioned by means of a servo drive.
  • The individual machining operations are performed with tools that are controlled by the PLC program
  • The subsequent operations are carried out automatically using individual workstations, without losing time, exactly according to the size and function introduced. As a result, high production speeds are achieved, while maintaining very high dimensional accuracy.

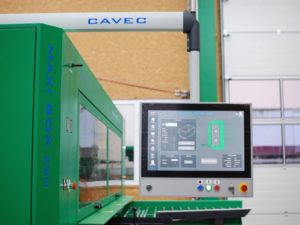

  • The appropriate functions and dimensions are entered using an industrial computer with a touch screen. Repetitive orders (programs) can be saved in computer memory.
  • The current status of the machine as well as the entered program are displayed and monitored on a color touch screen. This allows the machine operator to operate easily and continuously monitor the various functions

Standard - main functions

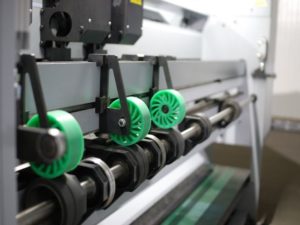

In the feed direction (shear section)
  • flattening
  • creasing
  • trimming flaps for gluing
  • cutting up to three pieces (cardboard boxes)
Crosswise to the feed (Grooved beam section)
  • creasing
  • slots
  • flattening the gluing flap (max. 40 mm)

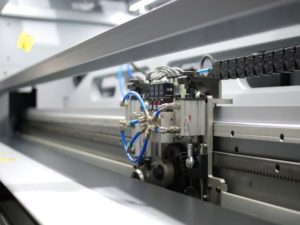

Cross to Feed (Multi Tool)
  • total length cutting
  • creasing
  • perforation
  • partial cut
  • partial creasing
  • partial perforation
Additional functions (optional)
  • Trimming flaps for gluing
  • Die-cutting of various shapes such as cardboard lifting handles, vents, etc.
    standard die cutting size is 120x120mm (optional 180×200),
    maximum number of die-cutting devices – 3
    Offset tools: cutting, creasing, perforation (bottom and top, in the direction of the feed)

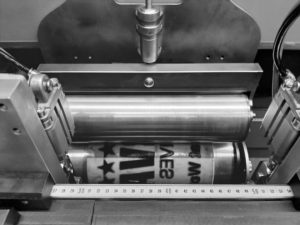

  • 1 or 2 flexo printers
    If not in use, they can be removed from the machine. Printing area: 300mm wide and 500mm long (in the direction of the sheet feed)
  • Slots in the feed direction
Technical data

Sheet format min:

620 (L) x 360 (W) mm

Sheet format max:

10,000 (L) x 2,800 (W) mm

Material thickness:

from 2.5 to 16 mm

Repeatability:

+/- 1 mm

Feed speed:

stepless from 0 to 180m / min.

Multitool cross tool cycle time:

approx. 0.5 sec.

Cycle time of the beam for slots and creases:

approx. 0.7 sec.

Min. Distance between creases in the feed direction:

0 mm

Min.spacing between knives in the direction of travel:

0 mm

Sheet insertion height (from the ground):

1.000 mm

Thickness of slot knives (optional):

8 or 10 mm

Feed drive:

servo motor

Transverse tool drive:

servo motor

Slot beam drive:

3-phase 4 kW gearmotor

Electrical connections:

400 V 3+N+PE / 50 Hz / 18 kW

Compressed air:

max. 150 l / min, 8 bar

Space requirement
The machine is ready to work
(without hydraulic table)

approx. 7 x 4 x 2 m (L x W x H)

Mass:

approx. 7 T.
